Ford 8N ignition timing is one of the most important — and most frequently mishandled — maintenance tasks on a classic Ford tractor. The 8N changed distributor types mid-production, and the timing procedure is different depending on whether your machine has the early front-mount distributor or the later side-mount distributor. Using the wrong procedure for your distributor type will leave the timing incorrect regardless of how carefully you follow the steps. This guide covers the correct specification, how to identify which distributor you have, and the step-by-step procedure for each type.
👉 Check current Ford 8N listings — see available stock and pricing →
Written by: Farmers Equipment editorial team — specialising in classic Ford tractors from the N-Series through the Thousand Series.

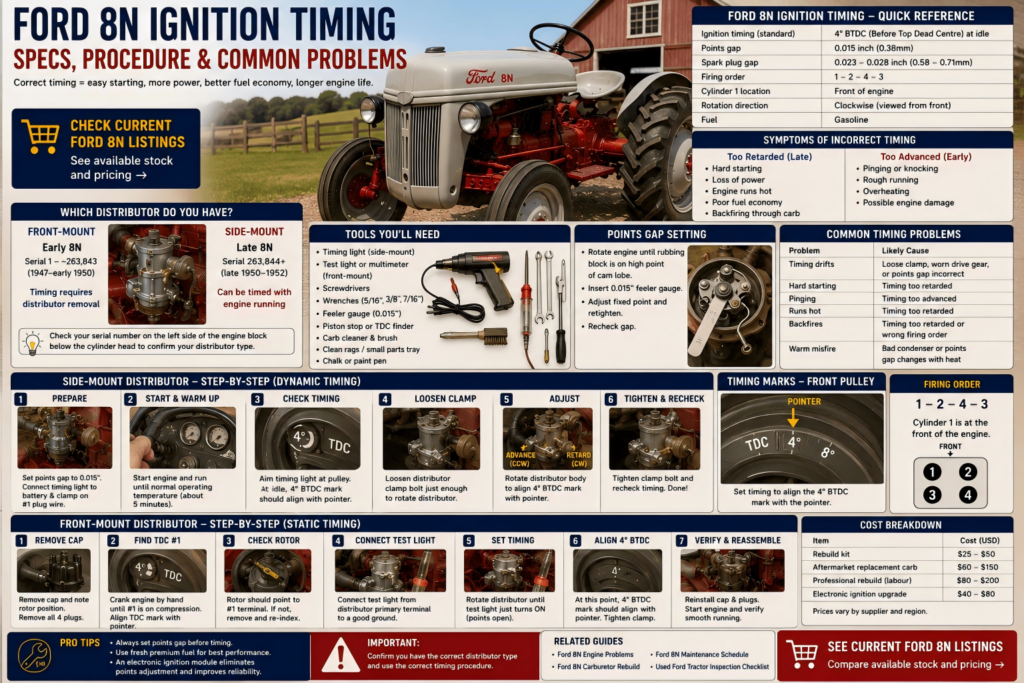

Ford 8N Ignition Timing — Quick Reference
| Item | Specification |
|---|---|
| Ignition timing (standard) | 4° BTDC (Before Top Dead Centre) at idle |
| Early 8N distributor type | Front-mount — serial 1 through ~263,843 (1947–early 1950) |
| Late 8N distributor type | Side-mount — serial 263,844 onward (late 1950–1952) |
| Points gap | 0.015 inch (0.38mm) |
| Spark plug gap | 0.023–0.028 inch (0.58–0.71mm) |
| Firing order | 1-2-4-3 |
| Cylinder 1 location | Front of engine |
| Rotation direction | Clockwise (viewed from front) |
Front-Mount vs Side-Mount Distributor — Which Do You Have?
This is the most important question before attempting to set ignition timing on a Ford 8N. The two distributor types require completely different procedures, and the difference is not just procedural — the front-mount distributor must be removed from the engine to set timing, while the side-mount distributor can be timed with a timing light while the engine runs.
| Feature | Front-Mount Distributor | Side-Mount Distributor |
|---|---|---|
| Production years | 1947–early 1950 (serial 1 to ~263,843) | Late 1950–1952 (serial 263,844 to 524,076) |
| Location | Front of engine, driven from camshaft | Left side of engine block |
| Timing procedure | Static timing — distributor removed | Dynamic timing — timing light at idle |
| Ease of service | More involved — requires removal for timing | Easier — can time with engine running |
| How to identify | Distributor cap visible at front of engine near radiator | Distributor cap visible on left side of engine block |
Check your serial number if you are unsure. The serial number is stamped on the left side of the engine block below the cylinder head — see our Ford Tractor Serial Numbers guide to confirm your production year.
Symptoms of Incorrect Ford 8N Ignition Timing
| Symptom | Likely Timing Issue | Effect |
|---|---|---|
| Hard starting cold | Timing too retarded | Combustion event too late — poor starting torque |
| Engine pinging or knocking under load | Timing too advanced | Pre-ignition — combustion before piston reaches TDC |
| Loss of power | Timing too retarded | Late combustion reduces power output and efficiency |
| Engine runs hot | Timing too retarded | Combustion continuing into exhaust stroke generates excess heat |
| Excessive fuel consumption | Timing too retarded | Inefficient combustion burns more fuel for the same output |
| Backfiring through carburettor | Timing too retarded or firing order wrong | Combustion event occurring on intake stroke |
| Runs well cold but poorly warm | Points gap incorrect causing timing drift with heat | Points expand with heat, altering dwell and effective timing |
Tools Required for Ford 8N Ignition Timing
For side-mount distributor (late 8N):
- Timing light (inductive pickup type recommended)
- Screwdriver for distributor clamp
- Wrench for distributor clamp bolt
- Chalk or paint pen to mark timing marks
For front-mount distributor (early 8N):
- Test light or multimeter (for static timing)
- Screwdriver set
- Wrench set
- Piston stop tool or TDC finder (for finding Top Dead Centre)
- Chalk or paint pen
Timing lights compatible with the Ford 8N are widely available at auto parts stores. An inductive timing light (clamps around the plug wire rather than inline) is easier to use and more reliable than older neon-bulb timing lights.
Ford 8N Ignition Timing — Side-Mount Distributor Procedure
The side-mount distributor is the easier of the two to time. The procedure uses a timing light with the engine running at idle.
Step 1 — Prepare
- Identify the timing marks on the crankshaft pulley at the front of the engine. There is a timing pointer on the engine block and marks on the pulley
- Clean the marks with a rag and mark the 4° BTDC position with chalk or paint pen so it is clearly visible
- Set the points gap to 0.015 inch before timing — incorrect points gap affects timing accuracy
- Connect the timing light to battery terminals and clamp the inductive pickup around the number 1 cylinder plug wire (front cylinder)
Step 2 — Timing at Idle
- Start the engine and allow it to reach operating temperature — approximately 5 minutes of running
- Aim the timing light at the timing marks on the crankshaft pulley while the engine idles
- The timing light will strobe in sync with the firing of cylinder 1 — the mark should appear to freeze at the timing pointer
- Read the position: the pulley mark should align with the 4° BTDC pointer when the engine is at idle
Step 3 — Adjust if Needed
- Loosen the distributor clamp bolt at the base of the distributor — just enough to allow the distributor body to rotate
- Rotate the distributor body slowly: rotating it in the direction opposite to rotor rotation advances the timing; rotating in the same direction as rotor rotation retards it
- Watch the timing mark through the timing light as you rotate the distributor — stop when the mark aligns with 4° BTDC
- Tighten the clamp bolt while holding the distributor in position
- Recheck the timing after tightening — tightening the clamp can slightly shift the distributor position
Ford 8N Ignition Timing — Front-Mount Distributor Procedure
The front-mount distributor requires a static timing procedure because the distributor must be removed to service and time it correctly. The procedure is more involved but well-documented.
Step 1 — Find Top Dead Centre (TDC) on Cylinder 1
- Remove all four spark plugs
- Remove the distributor cap and note the position of the rotor
- Place your thumb over the number 1 spark plug hole (front cylinder)
- Crank the engine slowly by hand (bar or wrench on the crankshaft pulley bolt) until you feel compression pushing against your thumb — this confirms the compression stroke of cylinder 1
- Continue rotating slowly until the TDC timing mark on the crankshaft pulley aligns with the timing pointer on the engine block
- You are now at TDC on cylinder 1 compression stroke
Step 2 — Set the Distributor
- With the engine at TDC cylinder 1, the rotor in the distributor should point to the number 1 cylinder wire terminal in the cap
- If the rotor position is incorrect, the distributor has been installed one tooth off on the drive gear — remove and reindex
- Set the points to 0.015 inch gap with the rubbing block on a high point of the cam
Step 3 — Static Timing with Test Light
- Connect a test light between the distributor primary terminal and a good ground
- Turn the ignition key to the ON position (do not crank)
- Rotate the distributor body slowly until the test light just illuminates — this is the moment the points open, which is the ignition firing event
- At this point, the timing mark on the crankshaft pulley should align with the 4° BTDC pointer. If it does not, rotate the distributor to achieve this alignment while maintaining the test light just on
- Tighten the distributor clamp and recheck
Step 4 — Verify
- Reinstall the distributor cap and spark plugs
- Start the engine and listen for smooth running — no pinging under load (too advanced) and no excessive backfiring (too retarded)
- If a timing light is available, verify with cylinder 1 at idle after startup
Setting Points Gap — Before Timing
Points gap must be set correctly before timing the engine — incorrect gap changes the dwell angle and affects the effective timing even if the distributor position is correct.
- Remove the distributor cap
- Rotate the engine until the rubbing block on the points is on the high point of the distributor cam lobe — this is the maximum gap position
- Insert a feeler gauge of 0.015 inch between the points
- The feeler gauge should slide through with slight resistance — not tight, not loose
- Adjust the fixed point by loosening its locking screw, moving the point, and retightening
- Recheck the gap after tightening — the act of tightening the locking screw can shift the point slightly
Electronic ignition upgrade: many Ford 8N owners replace the points-and-condenser system with an electronic ignition module ($40–$80). This eliminates points adjustment and drift as a timing variable and significantly improves cold-start reliability. The timing procedure with an electronic module typically uses the same specifications but requires no points gap setting. See our Ford 8N Maintenance Schedule for full ignition service intervals.
Common Ford 8N Ignition Timing Problems
| Problem | Cause | Fix |
|---|---|---|
| Timing correct but engine still runs poorly | Worn points or condenser affecting spark quality regardless of timing position | Replace points and condenser as a set before final timing |
| Timing drifts after setting | Distributor clamp loose, worn distributor drive gear, or points gap incorrect | Tighten clamp thoroughly, recheck points gap, inspect drive gear |
| Can’t find TDC on front-distributor engine | Timing marks worn or obscured by paint | Clean marks with solvent, use a piston stop tool for accurate TDC |
| Engine pings at all timing positions | Carbon deposits advancing effective timing, wrong fuel octane | Use fresh premium fuel, consider decarbonising the combustion chamber |
| Engine runs well until warm then misfires | Condenser failing with heat, or points expanding and closing gap | Replace condenser and recheck points gap |
Where to Buy Ford 8N Ignition Components
- Steiner Tractor Parts — comprehensive N-Series ignition catalogue including points, condensers, distributors, caps, rotors, and complete tune-up kits for both front-mount and side-mount distributors
- Tractor Supply Company and auto parts stores — stock standard points and condenser kits that fit the 8N ignition system
- eBay and Yesterday’s Tractors — NOS (new old stock) original Ford ignition components for purists, and aftermarket electronic ignition upgrade modules
Verdict — Ford 8N Ignition Timing
Getting Ford 8N ignition timing correct starts with identifying which distributor your machine has — front-mount (early 8N) or side-mount (late 8N). The specification is the same for both: 4° BTDC at idle. The procedure is entirely different. A correctly timed 8N with fresh points, condenser, and plugs is a reliably starting, smooth-running machine. Most hard-starting and rough-running complaints on classic Fords trace back to ignition system neglect rather than any fundamental mechanical problem.
For related guides: Ford 8N Engine Problems · Ford 8N Maintenance Schedule · Ford 8N Carburetor Rebuild →
Also available: Ford 9N · Ford 3000 · Ford 4000 · Ford 5000
👉 See current Ford 8N listings →
Frequently Asked Questions
What is the correct ignition timing for a Ford 8N?
4° BTDC (Before Top Dead Centre) at idle. This specification applies to both the front-mount distributor (early 8N, serial 1–263,843) and the side-mount distributor (late 8N, serial 263,844–524,076). The procedure for setting this timing differs significantly between the two distributor types — confirm which you have before beginning.
How do I time a Ford 8N with a front-mount distributor?
The front-mount distributor requires static timing. Bring cylinder 1 to TDC on the compression stroke, align the timing marks to 4° BTDC, then use a test light connected to the primary terminal to find the exact point at which the points open (the firing event). Rotate the distributor to achieve this at the 4° BTDC mark, then tighten the clamp.
How do I time a Ford 8N with a side-mount distributor?
The side-mount distributor is timed dynamically with a timing light at idle. Connect the timing light to the number 1 plug wire, start the engine, and aim the light at the crankshaft pulley timing marks. Rotate the distributor body until the 4° BTDC mark aligns with the timing pointer at idle, then tighten the clamp.
What are the symptoms of wrong ignition timing on a Ford 8N?
Too retarded (behind correct): hard starting, loss of power, engine running hot, excessive fuel consumption, backfiring. Too advanced: pinging or knocking under load, rough running, potential engine damage from pre-ignition. Both timing errors cause noticeable performance problems — a correctly timed 8N runs smoothly and starts readily when the rest of the ignition system is in good condition.
Does a Ford 8N have a front or side distributor?
It depends on the production year. Early Ford 8N tractors (serial 1 through approximately 263,843, produced 1947 through early 1950) have a front-mount distributor driven from the camshaft at the front of the engine. Later Ford 8N tractors (serial 263,844 onward, late 1950 through 1952) have a side-mount distributor. Check the serial number on the left side of the engine block to confirm which your machine has.
